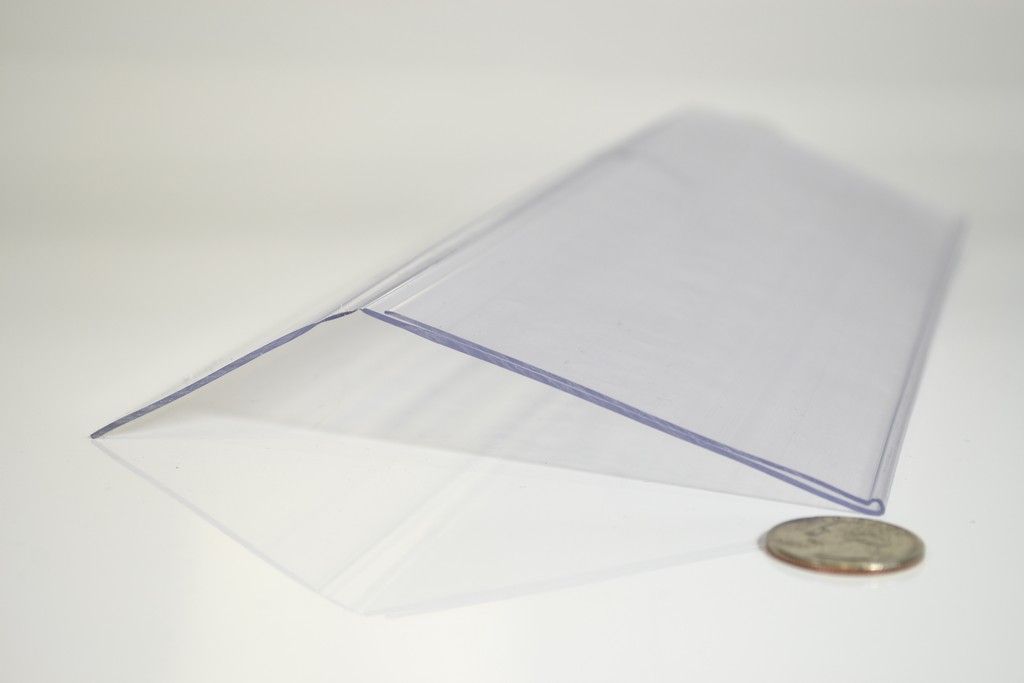

3-1/2 In Flip Up Data Trak
In stock
SKU
5277-31-0960-002
$23.28
Per 8' Stick ($2.91 /Ft.)
- Buy 125 for $18.96 each and save 19%
- Buy 625 for $18.00 each and save 23%
Note: Extrusions are sold in 8-foot lengths, but the maximum shipping length is 94 inches. If you require the full 8-foot length, please call us at 1-888-871-2446/ 323-526-2446 to place your order by phone. Custom cuts are available by using the "Custom Length" tab in the "Add To Cart" box. An additional $0.10 cutting charge will be attached to the price of each custom length in the shopping cart if using this option. The full 8 feet will be charged to your order regardless of the off cuts produced. Off cuts will be discarded.
3-1/2 In Flip Up Data Trak
| Part Number | 5277 |
|---|---|
| Color | Clear |
| Material | PVC |
| Length (in) | 96 |
| Cut Length (In.) | 96 |
| Size | 3.50 (3 1/2) |

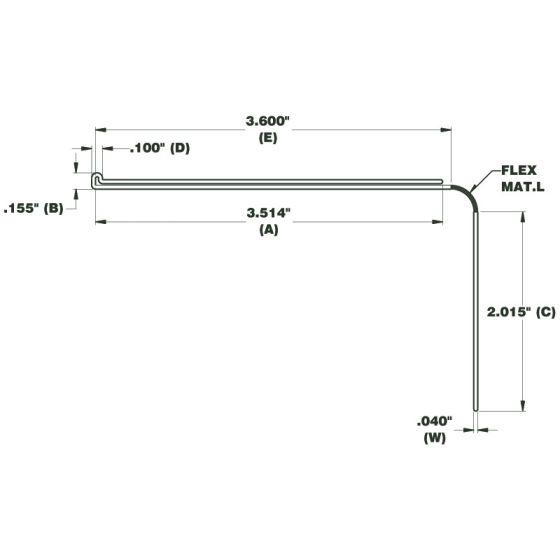

| Inches | Inches (dec) | Millimeters | |
| A | 3 1/2 | 3.514 | 89.2558 |
| B | 1/8 | 0.155 | 3.937 |
| C | 2 0/1 | 2.015 | 51.1811 |
| D | 1/8 | 0.1 | 2.54 |
| E | 3 5/8 | 3.6 | 91.4402 |
| W | 1/16 | 0.04 | 1.016 |
| * fractions rounded to nearest 1/16" | |||
