Co -Ex HInge 1/8"
In stock
SKU
6827-0960-00-00
$17.44
Each ($2.18 /Ft.)
- Buy 125 for $14.24 each and save 18%
- Buy 625 for $13.52 each and save 22%
Note: Extrusions are sold in 8-foot lengths, but the maximum shipping length is 94 inches. If you require the full 8-foot length, please call us at 1-888-871-2446/ 323-526-2446 to place your order by phone. Custom cuts are available by using the "Custom Length" tab in the "Add To Cart" box. An additional $0.10 cutting charge will be attached to the price of each custom length in the shopping cart if using this option. The full 8 feet will be charged to your order regardless of the off cuts produced. Off cuts will be discarded.
Co-Ex h-connector hinge for 1/8" material
| Part Number | 6827 |
|---|---|
| Color | Clear |
| Material | PVC |
| Length (in) | 96 |
| Cut Length (In.) | 96 |
| Size | 0.125 (1/8) |

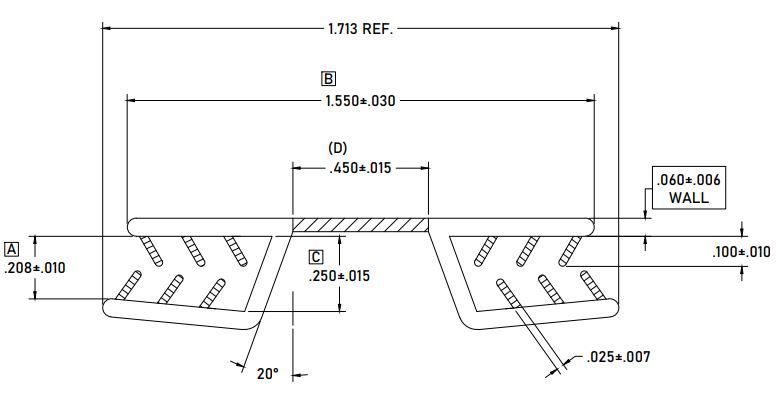

| Inches | Inches (dec) | Millimeters | |
| A | 3/16 | 0.208 | 5.2832 |
| B | 1/8 | 0.155 | 3.937 |
| C | 1/4 | 0.25 | 6.35 |
| D | 7/16 | 0.45 | 11.43 |
| W | 1/16 | 0.06 | 1.524 |
| * fractions rounded to nearest 1/16" | |||
