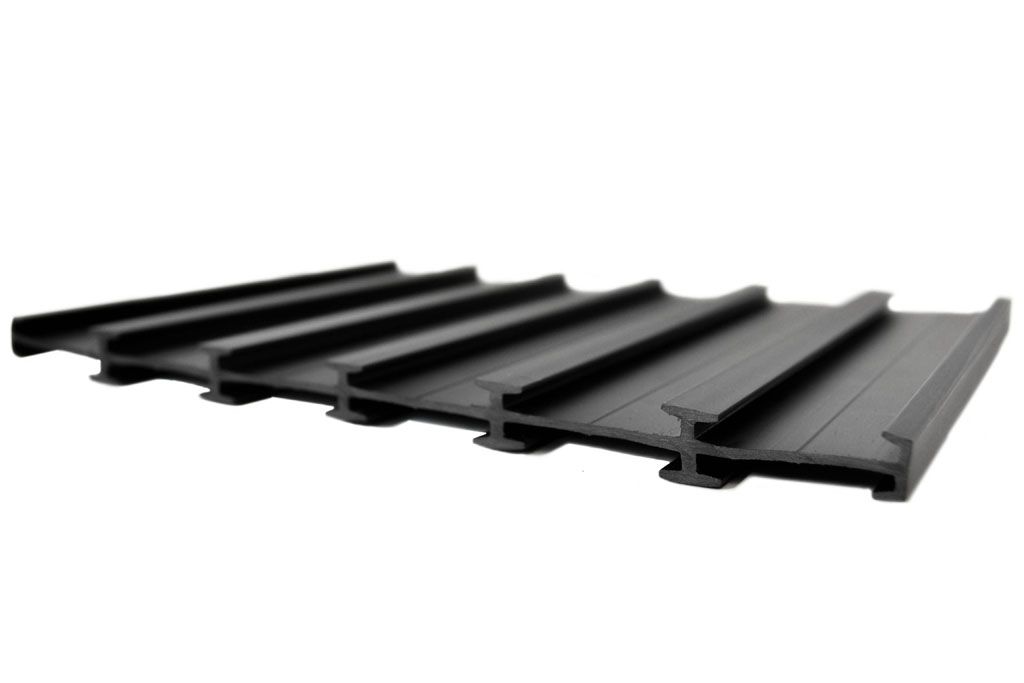

Double Sided 6 Channel
In stock
SKU
5083-0960-03-0
$37.76
Per 8' Stick ($4.72 /Ft.)
- Buy 125 for $30.88 each and save 18%
- Buy 625 for $29.20 each and save 23%
Note: Extrusions are sold in 8-foot lengths, but the maximum shipping length is 94 inches. If you require the full 8-foot length, please call us at 1-888-871-2446/ 323-526-2446 to place your order by phone. Custom cuts are available by using the "Custom Length" tab in the "Add To Cart" box. An additional $0.10 cutting charge will be attached to the price of each custom length in the shopping cart if using this option. The full 8 feet will be charged to your order regardless of the off cuts produced. Off cuts will be discarded.
Double Sided 6 Channel
| Part Number | 5083 |
|---|---|
| Color | Black |
| Material | Styrene |
| Length (in) | 96 |
| Cut Length (In.) | 96 |

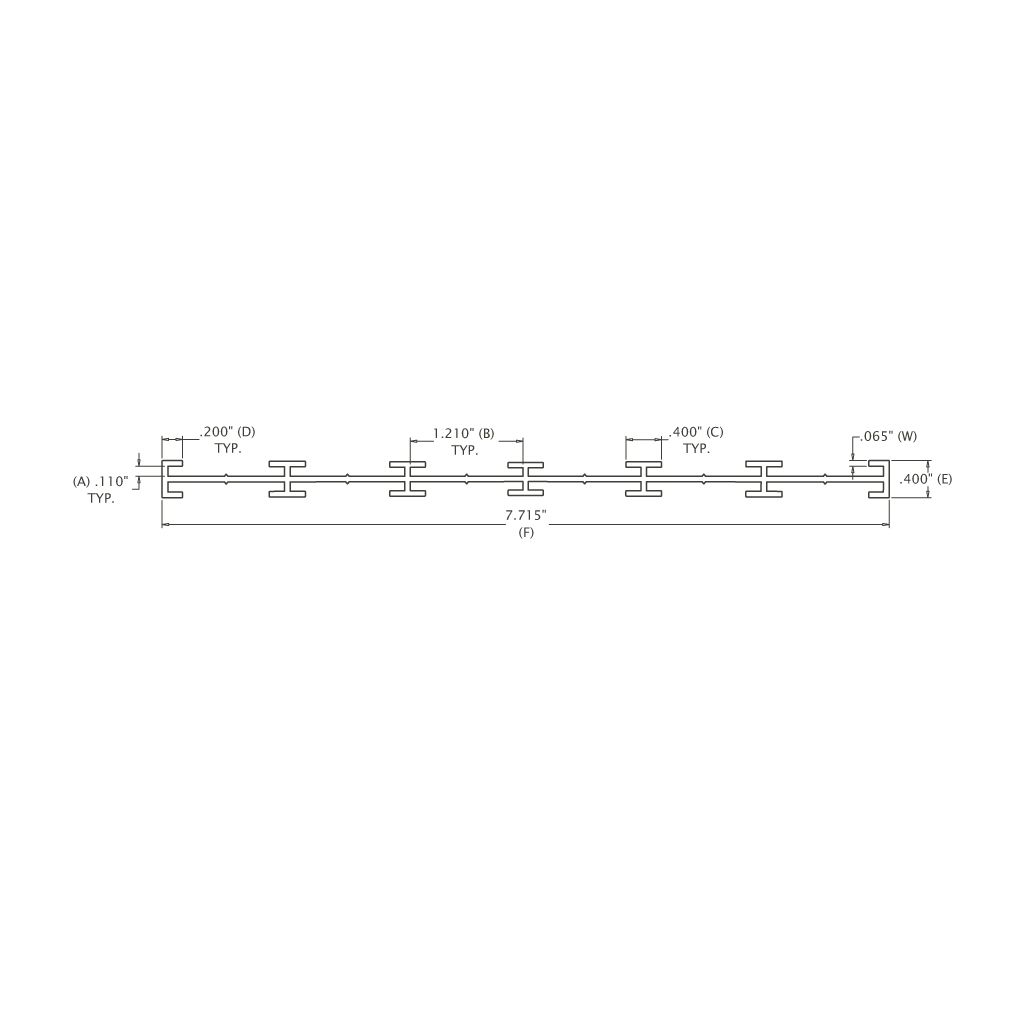

| Inches | Inches (dec) | Millimeters | |
| A | 1/8 | 0.11 | 2.794 |
| B | 1 3/16 | 1.21 | 30.7341 |
| C | 3/8 | 0.4 | 10.16 |
| D | 3/16 | 0.2 | 5.08 |
| E | 3/8 | 0.4 | 10.16 |
| F | 7 11/16 | 7.715 | 195.9614 |
| W | 1/16 | 0.065 | 1.651 |
| * fractions rounded to nearest 1/16" | |||
